CTMS Heat-shrinkable marker sleeves
CTMS Heat-shrinkable marker sleeves
KOSOO CTMS

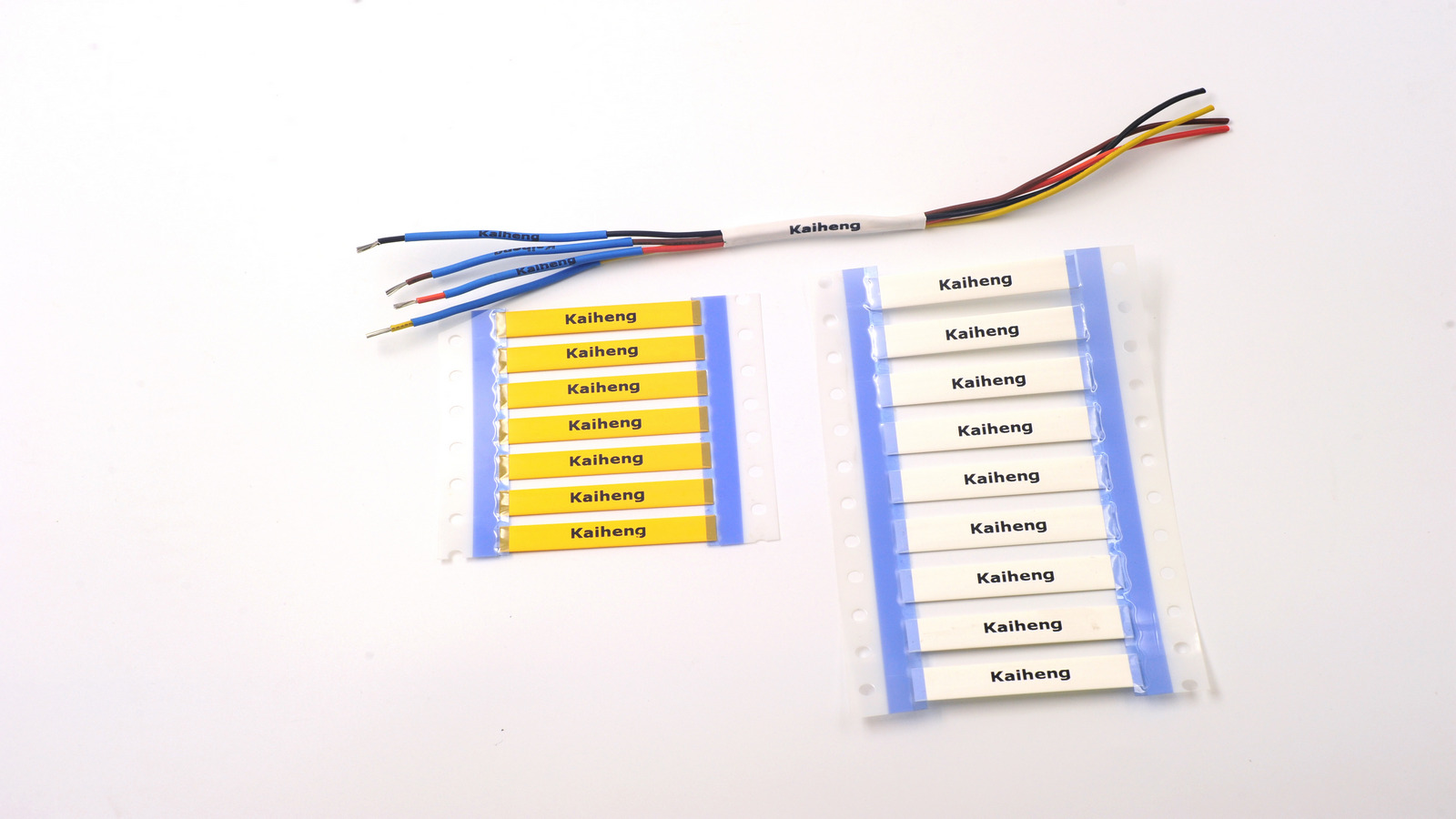

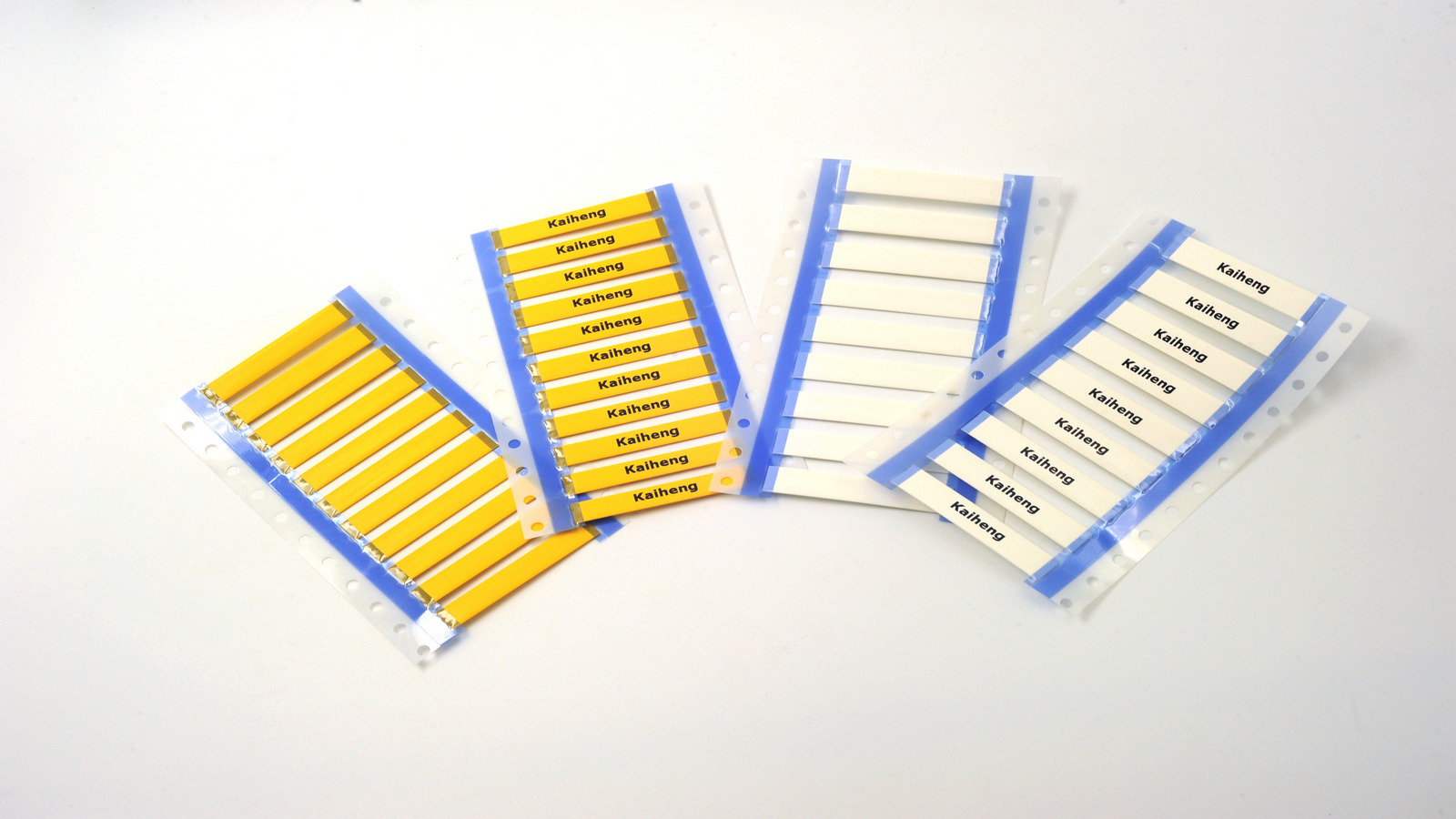

Heat-shrinkable identification marker sleeves
KOSOO CTMS heat-shrinkable identification marker sleeves are designed to meet the requirements of high- performance identification of wire and cable, tools, hoses and equipment. Made from reliable flame-retardant polyolefin with outstanding properties, sleeves can also be used as electrical insulation. Marks are permanent after printing.
·Sleeves meet the requirements of AMS-DTL-23053/5 (materials and performance).
·Flexible, highly flame-retardant.
·Sleeves meet the print performance requirements of SAE-AS81531.
·Markers can also provide insulation and strain relief.
·Marks are permanent after printing; mark performance improves after shrinking.
·Free of PCBs, PCPs, polybrominated biphenyls (PBBs), polybrominated biphenyl oxides and ethers (PBBOs, PBBEs and PBDEs) and toxic heavy metal compounds, which are classified as environmentally hazardous substances. Conform to European RoHS environmental directive.
·Operating temperature range: -55℃~125℃
·Minimum shrink temperature: 70℃
·Minimum full recovery temperature: 110℃
UL224 E214175 125℃ VW-1
AMS-DTL-23053/5
SAE-AS81531, MIL-STD-202
Physical properties:
Tensile strength 10.4 MPa min.
Elongation 200% min.
Low temperature flexibility (-55℃, 4hrs) No cracking
Heat shock (250℃, 4hrs) No cracking, dripping or flowing
Print performance:
UL224 50 rubs, legible
MIL-M-81531 50 rubs, legible
MIL-STD-202 30 strokes, legible
Electrical properties:
Dielectric voltage withstand 2.5KV, 60 sec No breakdown
Dielectric strength 19.7KV/mm min.
Volume resistivity 1014Ω·cm min.
Chemical properties:
Corrosion No corrosion
Flammability AMS-DTL-23053/5 Average burn time is less than 1 minute
Fluid resistance: (23℃, 24 hrs) Followed by print performancetests of
SAE-AS81531
mm/inch
|
Size (inch) |
Inside diameter |
Recommended use range |
|
|
As supplied (min.) |
After recovery (max.) |
||
|
3/32 |
2.4 (0.093) |
0.8 (0.031) |
0.9-2.0 (0.035-0.079) |
|
1/8 |
3.2 (0.125) |
1.0 (0.042) |
1.1-2.7 (0.044-0.105) |
|
3/16 |
4.8 (0.187) |
1.6 (0.062) |
1.8-4.1 (0.069-0.160) |
|
1/4 |
6.4 (0.250) |
2.1 (0.083) |
2.3-5.5 (0.091-0.215) |
|
3/8 |
9.5 (0.375) |
3.2 (0.125) |
3.5-8.0 (0.137-0.320) |
|
1/2 |
12.7 (0.500) |
4.2 (0.166) |
4.7-10.8 (0.183-0.425) |
|
3/4 |
19.1 (0.750) |
6.35 (0.250) |
7.0-16.3 (0.275-0.640) |
|
1 |
25.4 (1.000) |
8.5 (0.333) |
9.3-21.6 (0.366-0.850) |
|
1 1/2 |
38.1 (1.500) |
19.1 (0.750) |
21.0-33.0 (0.825-1.300) |
|
2 |
50.8 (2.000) |
25.4 (1.000) |
27.0-48.0 (1.063-1.890) |
·Standard color：White(-WH), yellow(-YL)
·Nonstandard color：Special colors can be available upon request.
·Nonstandard size
Special sizes are available upon request.
·Standard packaging：2 inch pieces or by spool
·Ordering description：Specify product type, size and color.
